OHSNAP (Open Hardware for Secure Networks And Privacy), is an open-source platform for building secure networks with a known hardware root of trust.
|
Open Hardware for Secure Networks And Privacy (OHSNAP)
This is the project page for OHSNAP, an open-source platform for building secure networks with a known hardware root of trust.
Motivation
Virtually all commercially available networking equipment is proprietary and closed-source and cannot be independently verified to be free of malware. There have been documented cases of attackers – sometimes entire nation-states – physically modifying networking equipment and networkable devices in order to exfiltrate data and/or command & control otherwise-trusted systems. This leaves the average individual with little choice but to hope that their home network consists of and is secured by devices which do not phone home or contain other backdoors. Such a situation breaks the guarantee that the user's data and devices remain their sovereign property and instead places control into the hands of manufacturers and governments.
The goal of this project is to produce completely open designs and implementations for critical network infrastructure with auditable roots of trust. By making the hardware design, manufacturing process, and firmware and software stacks fully auditable, it allows users to inspect the entire end-to-end flow of their data and to directly control some or all of the fabrication of the device in order to establish positive provenance.
Device Summary
OHSNAP is an exploratory platform for secure hardware. The first two OHSNAP devices will be:
- OHSNAP Firewall: An embedded computer running an open source firmware and OS. It will expose at least two gigabit Ethernet ports and is intended to be a trusted checkpoint between two untrusted networks. The default software configuration will be OpenBSD running a custom connection monitoring, alerting, and filtering tool.

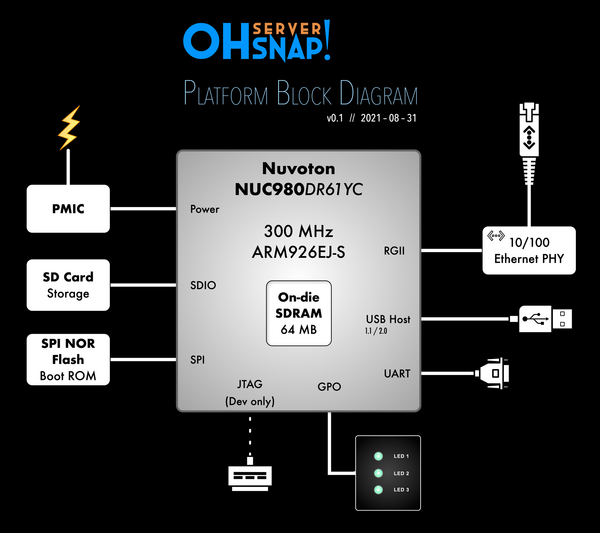

- OHSNAP Server: A small, low-power, single-board computer with a single 10/100 Ethernet port. May be used as a server, client, or IoT device. Will run NetBSD.
Design Security Principles
- No closed-source firmware or software allowed anywhere in the stack
- Implementation must be independently reproducible by third parties
- Factory-made PCBs must be avoided if possible or physically produced in the USA when necessary
- Components should be as supplier-diversified as possible
- Every phase of manufacturing must be either tamper-proof or tamper-evident
- Fewer pieces = smaller attack surface
Open Source Repository
All design documentation, schematics, firmware, and software are available at our GitHub repository.
Meetings
We are currently meeting every Thursday at 16:30 PT (GMT-8) using the Jitsi video platform.
How to Get Involved
The best way to get involved is to come to one of our weekly meetings. All forms of help and areas of expertise are welcome and needed! This is a crossfunctional, multidisciplinary project that requires people with all sorts of talents and interests to collaborate if it is to succeed.
In addition to graciously accepting general help and contributions, we have a current need for specific expertise in the following areas:
- Low-level software/OS engineering
- High-level software/application engineering
- Firmware engineering
- Hardware engineering
- Quality assurance / testing
- Materials science
- Cryptography
- Network security
- Web design
Open Tasks – Contributors Wanted!
- Newcomers / no special skills needed
- Install OpenBSD on real hardware (if available) or a virtual machine and start getting familiar with it.
- Electrical engineering
- Create a PCB layout for the OHSNAP Server PoC schematic.
- Help with brainstorming more ideas for signal isolation methods for increased tamper resistance.
- Software engineering
- [OS / Kernel]: Port NetBSD to the NUC980 SoC.
- [Rust + MQTT + TLS] Design and implement the distributed firewall daemon.
- [UI/UX (macOS / Windows / Linux / iOS / Android)] Design and implement the distributed firewall client.
- [Python] Continued development on the OHSNAP OpenBSD Rapid Provisioning Tools.
- Sysadmins
- Identify the software packages and optimal configuration for network intrusion detection on OpenBSD.
- Web designers
- Create a one-page site for summarizing OHSNAP and rapidly onboarding potential new contributors.
Threat Model & Mitigations
Several representative threats and possible mitigations for them. Note that only regimes (A) and (B) are in scope for OHSNAP.
Threat Regime | Example Scenario | Possible Mitigations |
---|---|---|
(A) During assembly | Manufacturer tampering |
|
(B) During transit to end-user | Vendor/reseller tampering | |
Mail interdiction | ||
Embed device in another device | ||
(C) At customer's install site | Evil user tampering | Live system intrusion detection (examples??) |
Routine pogo board testing | ||
Passive monitoring, e.g.,
|
??? |
Firewall Software
Open Questions
- How to offer root-of-trust guarantees to non-DIY customers?
Status
June 2022
- New software initiatives:
- Core functionality of OHSNAP Firewall will require custom software on the firewall and optionally clients. This will also be a standalone software product that's useful outside of OHSNAP hardware.
- Firewall software monitors and filters new connections to/from all downstream clients (hooks into OpenBSD's pf)
- Any new connection attempts (which haven't previously been preconfigured via
pf
rules) from client devices will generate an alert to one or more registered alerting devices and optionally on clients who want local first-responder rights - Users allow or deny the connection (either on a native client or on the alerting device) and optionally save their decision as a rule.
- All connections can be logged and searched for later forensic discovery or trend monitoring.
oort
(OHSNAP OpenBSD Rapid Provisioning Tools): A toolkit that can automate the provisioning of multiple devices with OpenBSD. Useful for both speeding up our debug cycles and for final imaging of hardware deliverables. Will also be a standalone software product that's usable outside of OHSNAP hardware.
- Core functionality of OHSNAP Firewall will require custom software on the firewall and optionally clients. This will also be a standalone software product that's useful outside of OHSNAP hardware.
- OHSNAP Server (with an appropriate UART LCD, Allow/Deny pushbuttons, and optional buzzer/vibration motor) can be used as a standalone alerting device for above.
- Created new top-level dev repositories (server, firewall, oort) along with a source control policy and workflow for the team.
- Separate new repo (docs) for links and other useful documentation of our research
February 2022
- Continuing discussion on OHSNAP Firewall architecture
- May consider adopting TFC-like separation between RGMII send & receive signals
- Requires splitting design into 2-3 independent boards.
- Could require some form of hardware authentication between boards. Key generated by using at time of firmware compilation & manual flashing.
- User can optionally be required to add final Ethernet jacks manually, enhancing security
- May consider adopting TFC-like separation between RGMII send & receive signals
- Restarted working on OHSNAP Server hardware
- Continuing PoC board layout
- Minor schematic updates include updating to KiCAD 6, creating a pin mapping for tracking resource allocation in firmware, and adding an SD card module for bootloading.
- Following updates of Voltera NOVA (desktop additive flexible electronics manufacturing) and Efabless (open source custom silicon manufacturing) for possible use in project
- Added a graphic showing OHSNAP Firewall as part of a user's network ecosystem.
November 11, 2021
Had some discussion on the OHSNAP Server boot process
- HW will have SPI flash, one SD card, and one USB port
- Primary bootloader will reside in SPI flash (may be updated through JTAG)
- Boot installer image or installed OS from SD card
- Installer will write OS to USB flash drive
- SW Development sequence:
- 1. Port NetBSD to NUC980
- 2. Write USB driver layer
- 3. Write SD card driver layer
Hardware To-Do: Need to add SD card
October 28, 2021
- Work has started on adding QEMU support for the NUC980 chip which we are using in OHSNAP Server. Development is currently on the develop branch.
August 10, 2021
- Work on Nuvoton dev board PCB layout is in progress; expected checkpoint in September
- Identified current main need: We need to grow the team to help solve major root-of-trust questions
- Need an easily digestible web presence (like a one-pager with an easy URL) to quickly show prospective collaborators
- We need a web designer to help with this!
- Move to a more distributed collaboration platform (Element/Matrix)
- Get more visuals (diagrams, photos) of plan and works-in-progress
- Continue to reach out to potential contributors and allies
- Can YOU help?
- Need an easily digestible web presence (like a one-pager with an easy URL) to quickly show prospective collaborators
- Discussed alternatives to SiFive/OpenFive + related projects
- Skywater - low-cost foundry with 180nm and 130nm nodes
- Efabless is offering free (in conjunction with Google) and low-cost custom silicon
- Libre-SOC - open source silicon SoC
- Princeton OpenPiton - open source research microprocessor
- Tim 'mithro' Ansell gives an overview of open source silicon tools
August 3, 2021
Meeting notes with SiFive / OpenFive:
- Can they do it? Yes: OpenFive has the capabilities to package both custom and standard cores to customer specs and can easily put the UC74-MC into a QFP package.
- Costs for any ASIC work are divided between IP and manufacturing.
- Manufacturing cost scales inversely with process node.
- 28nm process is roughly $1M for masks and another $1M for tapeout + packaging + validation. This is for a typical/minimum order quantity of 10,000.
- For comparison, 5nm processes are on the order of $20M+.
- The maximum process node is determined by design requirements (particularly max frequency, die size, power consumption, thermal dissipation). For OHSNAP Firewall our estimated lower frequency is ~700 MHz. This most likely means a maximum of 28nm process.
- Re-spins are often necessary for most clients due to silicon bugs. For 28nm, this adds a typical $150-200k for a 3 layer respin.
- 28nm process is roughly $1M for masks and another $1M for tapeout + packaging + validation. This is for a typical/minimum order quantity of 10,000.
- IP cost depends on what core we use and what options we select. The stock UC74-MC core that we were considering is about ~$1M. Additional features drive the price up. Switching from -MC (multicore) to single core only saves a modest amount of money.
- They offered a lower-end alternative to the U7-series: The U5 series. It is also Linux capable but has a shorter pipeline and so isn’t as performant. Typical IP is $500k.
- Manufacturing cost scales inversely with process node.
- Time: Typical time between submitting final RTL designs and start of tapeout is 1 year. This includes 1 week to generate masks, 10-12 weeks to process the silicon (for 28nm), postprocessing time (may not be necessary for QFP packages), die assembly at the package assembly site, and testing. Add another 4-5 months until we can receive engineering samples. Total time for the entire process from start to ramp is 1.5-2 years.
- Tamper evidence / manufacturing control:
- OpenFive uses two foundries: TSMC and GlobalFoundries. Our requirement for domestic manufacturing eliminates TSMC and 6 out of the 9 GlobalFoundries sites, but the remaining 3 are viable candidates. According to this article, two of those can hit 28nm and both are in New York.
- Three main arenas to consider: Silicon manufacturing, packaging + assembly, and testing.
- OpenFive transports the products themselves.
- They would be open to us installing an observer to monitor production (for a fee).
- They would be open to providing us the results of Layout-Versus-Schematic (LVS) tests.
- Development cycle
- 1. Pre-silicon: Emulation
- QEMU
- RTL
- FPGA Bitstream
- System C
- 2. Dev board
- For U5/U7 series chips: HiFive Unmatched
- Do bulk of development while waiting for engineering samples
- 3. Engineering samples
- Finish main development
- Debug debug debug
- Possibly re-spin Rev B silicon
- 1. Pre-silicon: Emulation
- They briefly mentioned SiFive Shield and WorldGuard, two architectural technologies for enhanced silicon security. While these don’t solve our problem of trusted manufacturing, they are definitely useful layers to add to our secure ecosystem.
- Summary: They seemed ready to engage with us but the cost is the big question. They were impressed by our mission and our passion and wanted to know more about the device, its use cases, and our business model. We told them that they are our Plan A and we really want to work with them but their cost estimates were an order of magnitude greater than we anticipated so we have to go back to the drawing board.
July 27, 2021
Preparing for meeting with SiFive to discuss custom packaging of the UC74-MC RISC-V core.
July 9, 2021
Explored RISC-V option. Many advantages:
- We can reduce the attack surface by including only the silicon IP blocks that we need
- Eliminates the requirement for outsourcing PCB manufacture
- One chip can serve as the base platform for all OHSNAP projects (firewall, server, TFC, etc.) as well as being adoptable by third parties
- Potentially improves best-case root-of-trust guarantee (but this requires a lot of thought and care)
- Extends the idea of Open Hardware beyond traditional limits!
Main barriers:
- High cost of entry
- Need vendor buy-in for enhanced tamper evident manufacturing practices
- Significant development effort
We will deliberate and vote on this. If in consensus, next step is to engage vendor(s) and start understanding the height of the above barriers.
July 2, 2021
Examination of the OpenBSD source and mailing list archives shows that support for pre-v7 ARM architectures was intentionally removed from the OS. According to this table, the NUC980's ARM926EJ core is ARMv5-based and therefore unsupported.
Adding support for ARMv5 to OpenBSD is out of scope for this project and we're not aware of any plans by the OpenBSD developers to do so either. This means that we can't use the NUC980 with OpenBSD for the OHSNAP Server and leaves us with these choices:
- Pause the OHSNAP Server project and continue to focus on OHSNAP Firewall
- Resume searching for OpenBSD-compatible non-BGA chips that are similar to the Nuvoton (unlikely to exist on the market, as we have been searching for a while and chips like this tend to be older designs and therefore unlikely to be supported)
- Migrate to a different OS which has ARM926EJ support, such as NetBSD or Linux. Both are considered less secure than OpenBSD, the latter unacceptably so.
- With newly added and quickly expanding RISC-V support in OpenBSD, we may want to consider that architecture more seriously. One key advantage of open source silicon is that we can create a custom, high-performance chip and put it in a QFP package with only the pins exposed that we would need. Next steps would be getting ballpark estimates of taping out our own silicon from local vendors.
June 25, 2021
- Created v0.1 schematic for NUC980-based dev board. Will first be used with bare metal firmware.
- Ordered samples of NUC980DR61Y and the Nuvoton Chili dev board. The latter will be used to test firmware and Linux and to begin the OpenBSD port.
- Found article on porting NetBSD to ARM926EJ-S, the same core as in the Nuvoton chip.
June 18, 2021
We've settled on a roadmap:
- Create a fully homebuilt, low-performance 10/100 single Ethernet board that is capable of running OpenBSD ("Option A" from March 27, 2021). This approach will:
- Provide us with hands-on experience in designing, building, debugging our own hardware.
- Give us a testbed for experimenting with secure manufacturing practices.
- Require us to learn how to port OpenBSD to a new chip and board.
- Provide a ready-to-use reference design for other, related secure manufacturing projects at Noisebridge and beyond.
- Produce a physical deliverable that will create buy-in and grow our ecosystem.
- In parallel, we will continue to identify and engage potential vendors for high-performance designs which require securely outsourcing manufacturing.
The first low-performance design will be built around the Nuvoton NUC980DR61Y (see March 20, 2021). This will come in stages:
- HWPOC (Hardware Proof Of Concept): A minimal board designed to allow creating bare metal firmware to test basic design and in-house manufacturing on the Voltera PCB printer. We may attempt to boot Linux from this board, as there is kernel support for it and the design will be derived from the Nuvoton Chili dev board.
- SWPOC (Software Proof of Concept): Use the Nuvoton Chili board to port OpenBSD to the target chip.
- Proto: Boot OpenBSD from the minimal in-house board.
- EVT: First in-house board featuring Ethernet and all planned features. Still contains debugging connections.
- DVT: Finalized PCB. Begin testing low-qty mass production using pick & place machine.
- PVT: Final production units. Goes on to ramp build.
May 8, 2021
- Continued exploration of threat vectors and possible mitigations.
- More links added to resource list.
- Setting up Tinfoil Chat as a realtime collaboration platform and exploration of secure methodologies.
- Setting up OpenBSD on various SBCs and virtual machines to evaluate its fitness for use.
April 3, 2021
Identified three regimes for threat models, some concrete examples, and some hypothetical mitigations.
March 27, 2021
Still looking for a non-BGA ARM processor that contains two Ethernet PHYs and has 0.5mm or greater lead pitch (for Voltera V-1 PCB production. We are now considering three options for design:
- (A) Non-BGA ARM processor on a homemade mainboard [simplest but limited to non-gigabit speeds; may require SW porting]
- (B) BGA ARM processor on a fabbed carrier board attached to a homemade mainboard [more complicated but higher performance and easier to source; may avoid SW porting]
- E.g., NXP i.MX6SoloX
- Unpopulated carrier board will need to be examined, probably via x-ray, after production
- Carrier board reflow is still done by us
- Still need to look for more ways to increase provenance
- (C) Use an existing open source BGA-based project (e.g., Kosagi Novena) and modify it for trusted manufacturing [complexity likely between (A) and (B)]
- Will still likely need a BGA carrier board from (B) but may reduce R&D costs of the project
Infrastructure
We’ll be setting up an IRC server in parallel to testing local deployment of the Element secure chat system.
March 20, 2021
In order to make forward progress on the hardware, we will choose OpenBSD as the initial operating system and an ARM-based architecture for the CPU. Users will be able to use their own ARM-compatible OS if they choose, including Linux and Plan9 (if software support is added).
We will first create a Software-Intent Proof of Concept (SIPoC), which will be an OpenBSD-based router/firewall running on a commercially available SBC. We may then want, as a Proof of Concept (PoC), to port the software stack to the Common Networks nodes at Noisebridge and begin deploying them across sites.
The first version of our custom hardware should be amendable to DIY manufacturing. This means no BGA parts. This severely restricts the list of CPUs/SoCs to older and lower-performance chips, limiting our capability to 100MBps initially. We'll expand this list as we discover more:
List of non-BGA ARM SoCs
Current leading candidate: Nuvoton NUC980DR61Y - 64-eLQFP 0.5mmPros: Low pin count, has 10/100 PHY, 64 MB SiP RAM, HW crypto, relatively cheap (~$10 low qty)Cons: No native OpenBSD/NetBSD support, no video out, RAM may be tight, 0.5mm pitch is tough with Voltera, no USB 1 port (USB 2 needs 1 GHz scope for debugging)Open source sample codeReference schematics & design docs- Dealbreaker: Only one PHY on 0.5mm package
- TI AM1705 - 176-PQFP 0.5mm
- NXP i.MX233 - 128-LQFP 0.4mm
- Allwinner V3s - 128-eLQFP 0.4mm
March 13, 2021
- Looking for secure communications platform for project collaboration. Element / Matrix look promising.
- Possibly partner with CircuitLaunch for local hardware builds?
March 6, 2021
- Initial meeting. Discussed range of HW/SW design choices.
- Tentative Project Stages
- SIPoC: OpenBSD router/firewall on commercial SBC
- PoC: SW stack on Common Networks
- Proto 1 build: Low-speed (10/100 Mbps) DIY version
- Full build: 1 Gbps
- Explored possible design choices for future versions
- CPU
- ARM/ARM64 SoC
- RISC-V SoC
- FPGA
- Specifically no Intel/compatible architectures due to poor security record
- OS / Application Code
- OpenBSD
- Qubes
- Alpine Linux
- Plan9
- Custom FPGA code
- Trusted manufacturers
- CPU
Links to Resources
OHSNAP Internal Documentation Repository
Most new links will be added here: docs
Related projects
- MNT Reform - open hardware ARM laptop and related projects
- Kosagi Precursor - open hardware development platform for secure, mobile computation and communication
- Turris MOX - open source computing & networking ecosystem built around the Marvell Armada 3720
- Linuxstamp – open source non-BGA ARM9 Linux-capable SBC with 10/100 Ethernet on a 2-layer board
- EthernetFMC - open hardware GigE transceiver with RGMII interface based on Marvell 88E1510 chip
- Ethernut 5 - open hardware ARM9 computer (Linux but no OpenBSD)
- Open Hardware PowerPC laptop - FOSS POWER9 PC
- Google Titan - open source secure boot solution
- Deprecated projects
- Kosagi Novena - bunnie Huang's open hardware ARM SBC with OpenBSD support and dual Ethernet
- SecurityRouter - OpenBSD distro for network management
Hardware anti-tampering
- Transparent PCB manufacturer
- Tamper evident markers
- Wikipedia article on Tamper Evident Technology
- "Open Source is insufficient to solve trust problems in hardware" by Bunnie Huang (video presentation)
- DustIdentity embedded diamond nanocrystals for system ID
- PUFs (Physically Unclonable Functions) created in silicon on the IC wafer
- Paper describing principle
- Stealthy Dopant-Level Hardware Trojans
Other OpenBSD-capable boards
- Raspberry Pi
- Pine64 PineBookPro and RockPro64
- NanoPi R4S
Open source / custom silicon
- Libre-SOC - open source silicon SoC
- FOSSi - Free and Open Source Silicon Foundation
- Skywater - low-cost foundry with 180nm and 130nm nodes
- Efabless - low-cost custom silicon manufacturing
- Princeton OpenPiton - open source research microprocessor
- Tim 'mithro' Ansell gives an overview of open source silicon tools
Software & firmware
- Libreboot - freedom-respecting boot firmware
- Porting NetBSD to ARM926EJ-S - article on adding support to NetBSD for the same ARM9 core that the Nuvoton NUC980 uses
Other architectures
- RISC-V:
- OpenBSD on RISC-V: Porting OpenBSD to RISC-V ISA (PDF), GitHub repo
- SiFive - custom RISC-V manufacturer in the South Bay
- OpenFive - custom RISC-V manufacturer in the South Bay
- Mill Computing - novel CPU design in the North Bay
- POWER9 – open source ISA that's supported by OpenBSD
- OpenPOWER GitHub repo
- Raptor Blackbird Secure Desktop - FOSS server-class POWER9 computer
Hardware manufacturers
- San Francisco Circuits
- CircuitLaunch
- OSHPark
- Bay Area Circuits
- EM Solutions - PCB assembly
OpenBSD
- OpenBSD website
- Undeadly, the OpenBSD journal & news
- OpenBSD mailing lists
- OpenBSD.app: Search curated 3rd-party packages
- Changes made since last OpenBSD release
Design tools
- KiCAD - schematic capture and PCB layout
Communication & collaboration platforms
- Element / Matrix - open source, distributed, secure chat
- Wire - open source, secure chat
- Scuttlebutt - open source, distributed, secure social network
- Gitter - open source chat
